| Model |

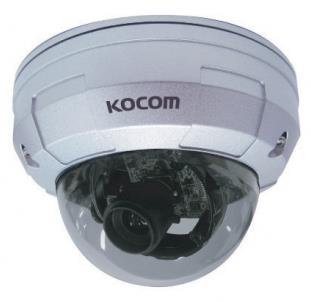

KCC-D500HO |
| Power |
DC 12V ± 2V ( Max 1.5 Watts ) |
| Total Pixels |
811(H) x 508(V) |
795(H) x 596(V) |
| Effective Pixels |
768(H) x 494(V) |
752(H) x 582(V) |
| Image Pick-up Device |
1/3" Sony Super HAD CCD |
| Scanning System |
2 : 1 Interlace |
| Scanning Frequency |
15.734KHz(H) / 59.94Hz(V) |
15.625KHz(H) / 50Hz |
| Synchronization |
Internal |
| Resolution |
540TV lines |
| Video Output |
1.0Vp-p / 75 (Video 0.714Vp-p, Sync 0.286Vp-p) |
| S/N Ratio |
50dB (AGC off / Sharpness off) |
| Min. illumination |
0.3 Lux(F1.2)(Color) / 0.002 Lux (Sens-up. 128X) |
| Gain Control |
Low / Middle / High / Off selectable |
| DNR |
Low/Middle/High/Off selectable (Noise control) |
| White Balance |
ATW / AWC / Manual selectable (1,800˚K ~ 10,500˚K) |
| Electronic Shutter |
Auto / Manual
(1/60 ~ 1/120,000sec) |
Auto / Manual
(1/50 ~ 1/120,000sec) |
| Sens-up |
Auto / Off (selectable limit 2X ~ 128X) |
| OSD |
On/Off |
| Motion Detection |
On / Off (4 Programmable zone, Screen display) |
| Mirror |
On / Off (Horizontal image inversion) |
| Privacy Function |
On / Off (4 Programmable zone) |
| Sharpness |
On / Off (Level adjustable) |
| LENS |
Varifocal Lens (f : 4~9mm @ F=1.6) |
| Operationg Temperature |
-10˚C ~ 50˚C |
| Operationg Humidity |
30% ~ 80% RH |

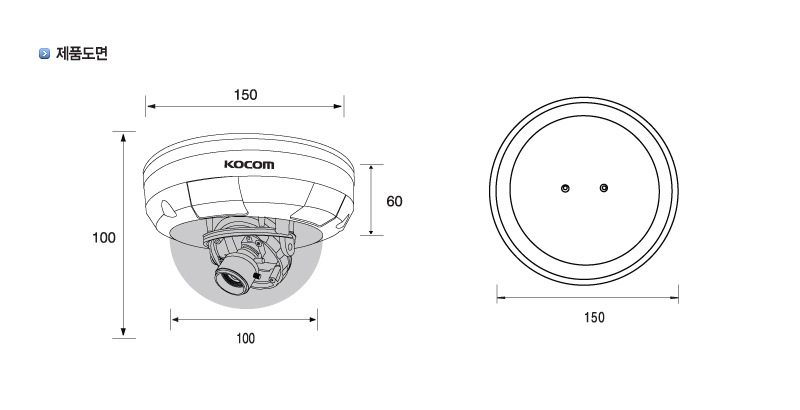

| Dimension |
150(W) x100(H) x 60(D)mm |
| Weight |
Approx 675g |
